4K UHD 65" Outdoor Lcd Advertising Screen 2500cd/M2 With PCAP Touch

Product Categories
Maxbright Display Media (Shenzhen) Co., Ltd.
Contact Now

4K UHD 65" Outdoor Lcd Advertising Screen 2500cd/M2 With PCAP Touch

Brand Name : Maxbright

Model Number : T650EDCP

Certification : CE

Place of Origin : Shenzhen, China

MOQ : 1

Price : Negotiable

Payment Terms : T/T, Western Union

Supply Ability : 100 sets / Month

Delivery Time : 4~5 weeks

Packaging Details : Pearl cotton shock absorption + wood case packaging

Resolution : 3840×2160 4K UHD

Brightness : 2000-2500 cd/m2, LED Backlight Enhanced

Power Consumption : 550W(FHD)

PIXEL PITCH : 0.372(H) x 0.372(V) mm

AC INPUT : AC 100 to 240V, 50 to 60 Hz

Display Area : 1428.5(H) x 803.52 (V)mm

Touch Screen : Projection Capacitive Touch Option

Contact Now

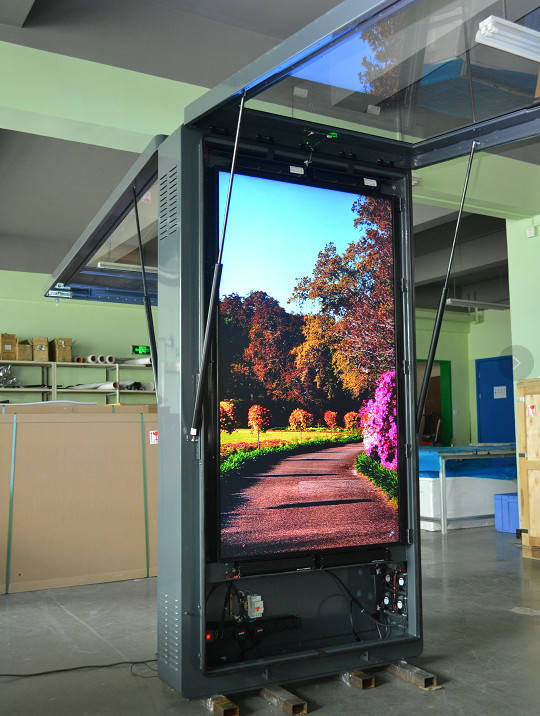

4K UHD 65" Outdoor LCD Digital Signage LCD Totem With PCAP Touch



  PANEL TYPE a-Si active matrix TFT-LCD
  ACTIVE AREA 803.52 x 1428.48 mm in portrait orientation
  NATIVE RESOLUTION 3840 × 2160 RGB  QWUXGA 4k
  PIXEL PITCH 0.372(H) x 0.372(V) mm
  COLOR 1.07 Billon color, 10 bits
  HORIZONTAL FREQ. 244KHz ~ 280KHz
  VERTICAL FREQ. 95Hz ~ 104Hz(DVB/PAL), 108Hz ~ 122Hz(NTSC)
  BRIGHTNESS 2000-2500 cd/m2, LED Backlight Enhanced
  CONTRAST RATIO 1400:1, Dynamic contrast ratio: 10000:1
  DIMMING Auto-dimming by Light Sensor
  VIEWING ANGLE 89/89/89/89
  RESPONSE TIME 5msec typical
  INTERFACE VGA, HDMI x 2
  MEDIA PLAYER Media Player (RK3399 CPU) (option)
  REMOTE CONTROL Support for Full OSD Features
  OPERATING VOLTAGE AC 100 ~ 240V 60/50Hz
  POWER CONSUMPTION 430W for 2000 nits, 540W for 2500 nits
  STANDBY MODE 5 Watt or less
  ACCESSORIES AC Power Cord, Remote Controller
    HDMI, VGA, Composite, S-Video cable x 1
  OPERATING Mini PC: i5-6500 CPU 3.2GHz, 4-8GB DDR2
  (option) 128G SSD, 5 x USB ports, 1 x RJ45, WiFi (option)
  TOUCH 10 points PCAP, or metal mesh option


DIMENSION

WEIGHT

2000(H) x 1110(W) x 260(D) mm, (without air-con)

185 Kg approx (without air-con)


    Waterproof IP65 Enclosure
  COOLING By cooling fans controlled by MCU for outdoor
    600W air-conditioner option for harsh outdoor
  FRONT PROTECTION 3+3 AR vandal glass or 6mm AR vandal glass


ENVIRONMENTAL

OPTION

Operating Temperature -20-50oC,

Wide temp. -30-50oC (with cool/warm air-con)


    Operating Humidity 10%-85%
    Storage Temperature -30-60oC
    Storage Humidity 5%-90%
  WARRANTY One Year, extended 2 or 3 years available





Advantage Of Outdoor Digital Signage

Sun Readable

  1. High brightness, high definition full HD lcd panel;
    2. Anti-refiective glass with less than 3%low refiectivity;
    3. Low humidity and constant temperature inner system enviroment allows LCD panel to perform optimally;
    4. With light sensor, automatically adjust the brightness, environmental friendly and maximum energy saving.



Waterproof

1. Unique patented sealing technology;
2. Outdoor security anti-corrosion more than 8 years;
3. IP65 protection grade enclosure dust can not enter into the display under the 20 mbar pression, harmless when water jetting in ever direction.



Extreme Temperature

1. Intelligent air conditioner cooling system integrated cooling and heating;
2. Unique patented intelligent temperature control technology;
3. Work stably and efficiently in wide temperature range from -40°C to +55°C;
4. housing enclosure made of non-oxidizing material zinc coted steel.



Vandal Proof

1. Strong steel housing protects inner system from vandalism;
2. AR bonding TM protection 6mm laminated / tempered glass prevents direct LCD panel assault;
3. Easy to remove and reinstall housing protective makes provide simple but effective protection of core enclosure;
4. Enclosed parts are not reachable to passerby.
